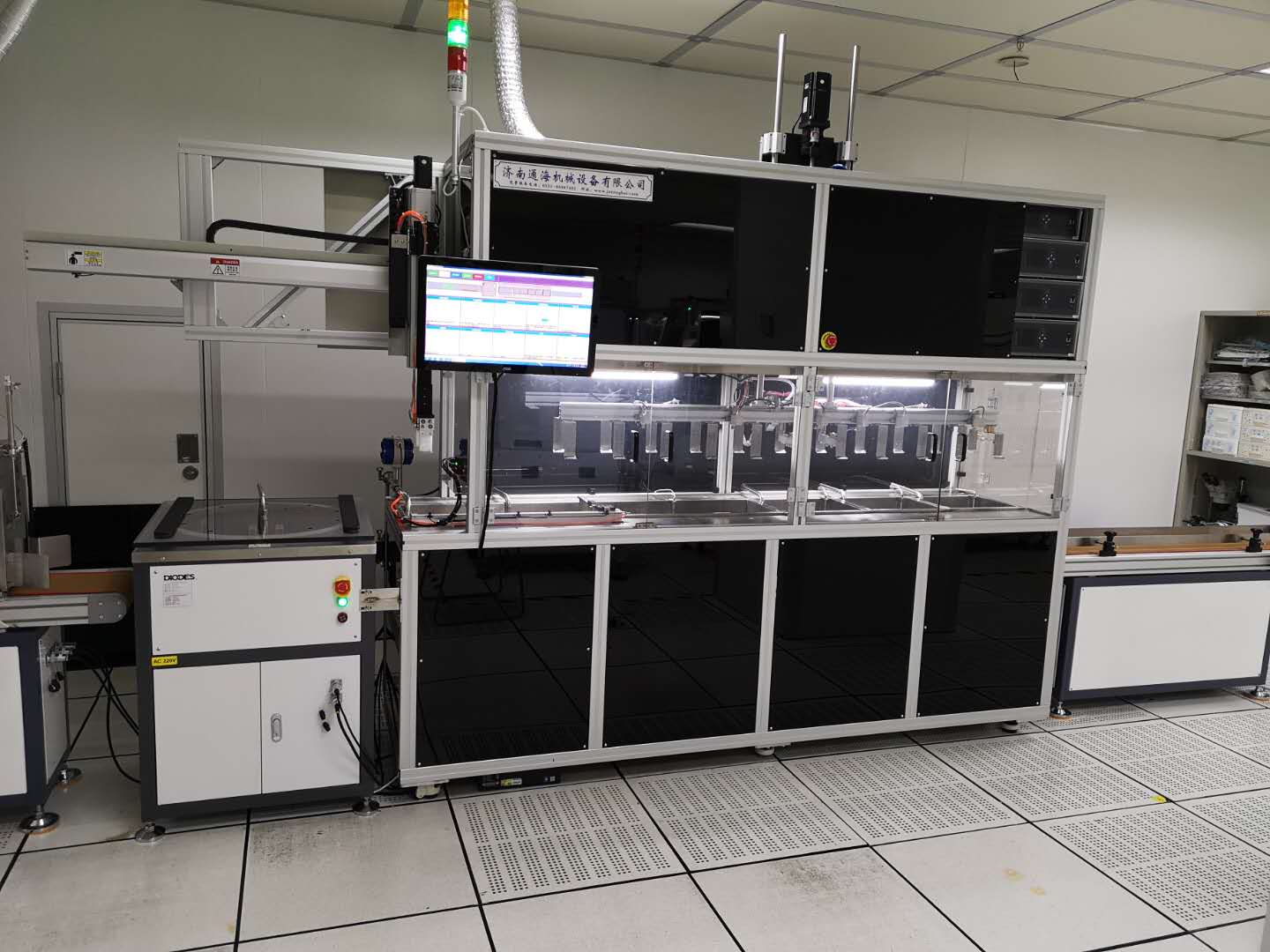

全自动超声波清洗设备、半自动超声波清洗设备，带电加热的超声波清洗机的加热功率从几十瓦到几千瓦不等。下面我们就一起来看看全自动超声波清洗机的分类及构成：

Automatic ultrasonic cleaning equipment, semi-automatic ultrasonic cleaning equipment, electric heating ultrasonic cleaning machine heating power from dozens of watts to thousands of watts. Let's take a look at the classification and composition of the automatic ultrasonic cleaning machine:

一、超声波清洗机分类：

1、 Classification of ultrasonic cleaning machine:

1、按照用途超声波清洗机分为：工业用超声波清洗机（汽车部件全自动超声波清洗机、发动机壳体全自动超声波清洗机、动力总成超声波清洗机）、商用超声波清洗机、实验室用超声波清洗机，家用超声波清洗机等。

1. According to the use of ultrasonic cleaning machine is divided into: industrial ultrasonic cleaning machine (auto parts automatic ultrasonic cleaning machine, engine shell automatic ultrasonic cleaning machine, power assembly ultrasonic cleaning machine), commercial ultrasonic cleaning machine, laboratory ultrasonic cleaning machine, home ultrasonic cleaning machine, etc.

2、按照容量超声波清洗机分为：大型超声波清洗机，中型超声波清洗机，小型超声波清洗机。其中容量从几毫升到几百升不等。

2. According to the capacity of ultrasonic cleaning machine is divided into: large ultrasonic cleaning machine, medium-sized ultrasonic cleaning machine, small ultrasonic cleaning machine. The capacity ranges from a few milliliters to several hundred liters.

3、大功率超声波清洗机，小功率超声波清洗机和无加热超声波清洗机。

3. High power ultrasonic cleaning machine, small power ultrasonic cleaning machine and non heating ultrasonic cleaning machine.

二、超声波清洗机的构成：

2、 Composition of ultrasonic cleaning machine:

超声波清洗机的组成部件有：超声波发生器、超声波换能器、清洗水槽

The components of ultrasonic cleaning machine are: ultrasonic generator, ultrasonic transducer and cleaning water tank

1、超声波发生器，通常称为超声波电箱、超声波电源。它的作用是把我们的市电(220V或380V，50或60Hz)转换成与超声波换能器相匹配的高频交流电信号。从放大电路形式，可以采用线性放大电路和开关电源电路，大功率超声波电源从转换效率方面考虑一般采用开关电源的电路形式。线性电源也有它特有的应用范围。

1. Ultrasonic generator, commonly known as ultrasonic box, ultrasonic power supply. Its function is to convert our city electricity (220 V or 380 V, 50 or 60 Hz) into high frequency AC signal matching with ultrasonic transducer. From the form of amplifier circuit, linear amplifier circuit and switching power supply circuit can be used. Considering the conversion efficiency of high-power ultrasonic power supply, the circuit form of switching power supply is generally adopted. Linear power supply also has its unique application range.

它的优点是可以不严格要求电路匹配，允许工作频率连续快速变化。

Its advantage is that the circuit matching is not strictly required and the working frequency can be changed continuously and rapidly.

超声波主要分为：自激式和它激式电源。

Ultrasonic is mainly divided into: self excitation and other excitation power supply.

2、超声波换能器，包括外壳、匹配层即声窗、压电陶瓷圆盘换能器、背衬、引出电缆，其特征在于它还包括Cymbal阵列接收器，它由引出电缆、8～16只Cymbal换能器、金属圆环、和橡胶垫圈组成;Cymbal阵列接收器位于圆盘式压电换能器3之上;压电陶瓷圆盘换能器用作基本的超声波换能器，由它发射和接收超声波信号;Cymbal阵列接收器位于圆盘式压电换能器之上，作为超声波接收器，用于接收圆盘换能器频带之外的多普勒回波信号。

2. The ultrasonic transducer consists of a shell, a matching layer that is a sound window, a piezoelectric ceramic disk transducer, a back lining and an outgoing cable. It is characterized in that it also includes a cymbal array receiver, which is composed of an outgoing cable, 8-16 cymbal transducers, a metal ring, and a rubber gasket; the cymbal array receiver is located on the disc type piezoelectric transducer 3; The piezoelectric ceramic disk transducer is used as the basic ultrasonic transducer to transmit and receive ultrasonic signals; the cymbal array receiver is located on the disk piezoelectric transducer, as an ultrasonic receiver, it is used to receive Doppler echo signal outside the frequency band of the disc transducer.

清洗水槽是超声波清洗机里盛放需要清洗的物品和清水，有的清洗水槽很小，像家用JC-1024的清洗水槽就很小，有的清洗水槽很大，给工业定制的全自动超声波清洗机的水槽就很大。

The cleaning water tank is used to hold the articles and water that need to be cleaned in the ultrasonic cleaning machine. Some cleaning water tanks are very small, such as the domestic jc-1024 cleaning tank. Some cleaning water tanks are very large, and the water tanks for industrial customized automatic ultrasonic cleaning machines are very large.
